Introduction to PVC Insulated Cable
When it comes to electrical wiring, choosing the right type of cable is crucial. Among the various options available, PVC insulated cable stands out for its versatility and reliability. But how do you know which PVC insulated cable is right for your needs? In this guide, we’ll walk you through everything you need to consider, ensuring you make an informed decision.
Understanding PVC Insulation
What is PVC?
PVC, or polyvinyl chloride, is a synthetic plastic polymer that’s widely used in various applications, including electrical insulation. Its popularity stems from its durability, resistance to moisture, and excellent electrical insulating properties. Think of PVC as the superhero of the cable world—strong, reliable, and ready to protect your electrical systems from harm.
Benefits of PVC Insulation
So, why should you opt for PVC insulation? For starters, it’s cost-effective. PVC cables are generally more affordable than their counterparts made from other materials. Additionally, they offer great resistance to chemicals, abrasion, and UV light, making them suitable for both indoor and outdoor applications. Plus, they’re lightweight and flexible, which makes installation a breeze.
But that’s not all! PVC insulation also provides excellent electrical properties, ensuring minimal energy loss during transmission. This means you can enjoy efficient performance without worrying about excessive energy costs. And let’s not forget about safety—PVC is inherently flame-retardant, which adds an extra layer of protection in case of electrical faults.
Key Factors to Consider When Choosing PVC Insulated Cable
When it comes to selecting the right PVC insulated cable, there are several key factors to keep in mind. Let’s break them down one by one.
Voltage Rating
One of the first things you need to check is the voltage rating of the cable. This rating indicates the maximum voltage the cable can handle safely. Choosing a cable with a voltage rating that matches or exceeds your application’s requirements is essential. Using a cable with a lower voltage rating can lead to overheating and potential hazards.
Imagine you’re trying to fill a balloon with air. If you blow too hard, the balloon pops! Similarly, if you push too much voltage through a cable that can’t handle it, you risk damaging the cable and creating a dangerous situation. Always consult the specifications and ensure you’re selecting a cable that can handle the load.
Temperature Rating
Just like voltage, temperature ratings are crucial. PVC insulated cables come with different temperature ratings, typically ranging from -15°C to 70°C. If you’re using the cable in a high-temperature environment, make sure to select one that can withstand those conditions without degrading.
Think of temperature ratings as the cable’s comfort zone. If you place it in an environment that’s too hot or too cold, it won’t perform well. This can lead to insulation breakdown, which can cause short circuits or even fires. Always check the temperature rating to ensure your cable can handle the environment it will be in.
Cable Size and Type
The size and type of cable you choose will depend on your specific needs. Here’s a quick breakdown:

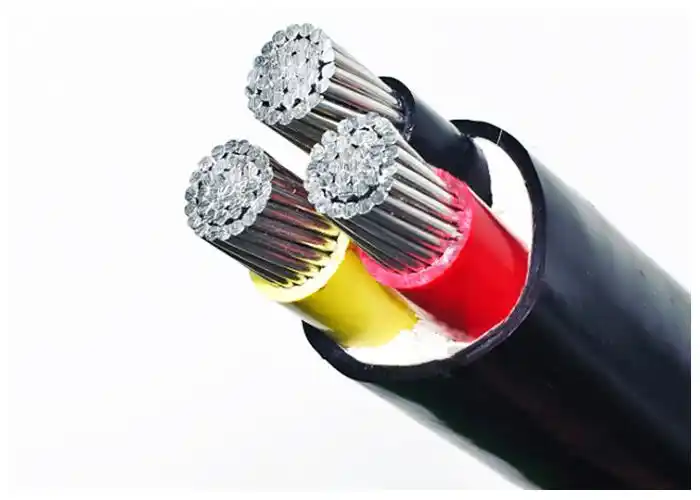

Single-Core vs. Multi-Core
Single-core cables are great for straightforward applications, while multi-core cables are ideal for more complex setups where multiple connections are needed. Think of single-core as a solo artist and multi-core as a full band—both have their place in the music of electrical systems!
Single-core cables are typically used for simple wiring tasks, such as connecting a light fixture to a switch. On the other hand, multi-core cables are perfect for applications like control panels or machinery where multiple signals need to be transmitted simultaneously. Choosing the right type ensures that your electrical system operates smoothly and efficiently.
Armored vs. Non-Armored
If your cable will be exposed to physical stress or harsh environments, consider armored cables. They have an additional layer of protection, making them more durable. Non-armored cables, on the other hand, are lighter and easier to handle, perfect for less demanding applications.
Imagine you’re going on a hiking trip. If you’re trekking through rough terrain, you’d want sturdy boots to protect your feet. Similarly, if your cable will be in a high-risk environment, armored cables provide that extra layer of protection. However, if you’re just doing some light walking (or wiring), non-armored cables will do just fine.
Environmental Considerations
Where will your cable be used? If it’s outdoors, you’ll want to ensure it’s UV resistant and can handle moisture. For indoor use, consider factors like fire resistance and whether the cable will be exposed to chemicals. Choosing the right cable for the environment is like picking the right outfit for the weather—nobody wants to be caught in a storm without an umbrella!
For outdoor applications, look for cables that are specifically designed to withstand UV rays and moisture. These cables often have additional protective coatings that prevent degradation over time. For indoor applications, consider cables that are rated for low smoke and flame spread, especially if they’ll be installed in areas where fire safety is a concern.
Applications of PVC Insulated Cable
PVC insulated cables are incredibly versatile and can be used in a variety of applications. Let’s explore some of the most common uses.
Residential Use
PVC insulated cables are commonly used in residential settings for wiring homes, appliances, and lighting. They’re perfect for everyday electrical needs, providing safety and reliability without breaking the bank. Whether you’re installing new lighting fixtures or wiring up your home theater system, PVC cables are a go-to choice.
In residential applications, it’s essential to choose cables that meet local electrical codes and standards. This ensures that your wiring is safe and compliant, reducing the risk of electrical hazards. Always consult with a licensed electrician if you’re unsure about the specifications or installation process.
Industrial Use
In industrial settings, PVC insulated cables are used for machinery, control systems, and heavy-duty applications. Their durability and resistance to harsh conditions make them a go-to choice for factories and manufacturing plants. These cables can handle the rigors of industrial environments, ensuring that your operations run smoothly.
For industrial applications, it’s crucial to select cables that can withstand high levels of stress, temperature fluctuations, and exposure to chemicals. Look for cables that are specifically designed for industrial use, as they often come with additional features like enhanced insulation and protective coatings.
Common Mistakes to Avoid
When choosing PVC insulated cable, it’s easy to make mistakes. One common error is underestimating the voltage or temperature requirements. Another is overlooking the environmental conditions where the cable will be used. Always double-check specifications and consult with a professional if you’re unsure. Remember, it’s better to ask questions than to deal with costly mistakes later!
Another mistake is not considering the future needs of your electrical system. If you’re planning to expand or upgrade your system in the future, it’s wise to choose cables that can accommodate those changes. This foresight can save you time and money down the line.
Additional Applications of PVC Insulated Cable
PVC insulated cables are not just limited to residential and industrial uses. They have a wide range of applications across various sectors. Let’s explore some of these applications in more detail.
Commercial Use
In commercial settings, PVC insulated cables are essential for powering office buildings, retail spaces, and other business environments. These cables are used for lighting, HVAC systems, and data transmission. The flexibility and reliability of PVC cables make them ideal for the dynamic needs of commercial spaces.
For instance, in an office building, you might find PVC insulated cables running through the walls to power computers, printers, and other essential equipment. The ability to handle multiple electrical loads without overheating is crucial in these environments, where downtime can lead to significant losses.
Automotive Applications
Did you know that PVC insulated cables are also used in the automotive industry? These cables are employed in various vehicle systems, including lighting, ignition, and control systems. The durability and resistance to environmental factors make PVC cables a popular choice for automotive wiring.
Imagine driving your car at night. The headlights, dashboard lights, and even the ignition system rely on reliable wiring to function correctly. PVC insulated cables ensure that these systems operate smoothly, providing safety and convenience for drivers.
Telecommunications
In the telecommunications sector, PVC insulated cables are used for data transmission and communication systems. These cables are designed to handle high-frequency signals, making them suitable for internet and telephone lines. The insulation properties of PVC help minimize signal loss, ensuring clear communication.
Think of PVC insulated cables as the veins of a communication network. Just as veins transport blood throughout the body, these cables carry vital information across vast distances. Their reliability is essential for maintaining connectivity in our increasingly digital world.
Tips for Installing PVC Insulated Cable
Now that you understand the various applications of PVC insulated cables, let’s discuss some essential tips for installation. Proper installation is key to ensuring the safety and longevity of your electrical systems.
1. Plan Your Layout
Before you start installing PVC insulated cables, take the time to plan your layout. Consider the path the cables will take, the locations of outlets and switches, and any potential obstacles. A well-thought-out plan can save you time and effort during installation.
Imagine trying to navigate a maze without a map. It can be frustrating and time-consuming! Similarly, having a clear plan for your cable layout will make the installation process much smoother.
2. Use the Right Tools
Having the right tools on hand is crucial for a successful installation. Make sure you have wire cutters, strippers, and connectors that are compatible with PVC insulated cables. Using the right tools will help you make clean cuts and secure connections, reducing the risk of electrical issues.
Think of your tools as the instruments in a band. Each tool plays a specific role, and when used correctly, they create a harmonious result. Don’t skimp on quality—invest in good tools to ensure
Maintenance of PVC Insulated Cables
Once you’ve installed your PVC insulated cables, it’s essential to maintain them properly to ensure their longevity and performance. Here are some maintenance tips to keep your cables in top shape.
1. Regular Inspections
Conduct regular inspections of your PVC insulated cables to check for any signs of wear and tear. Look for frayed insulation, exposed wires, or any discoloration that might indicate damage. Catching these issues early can prevent more significant problems down the line.
Think of inspections as routine check-ups for your cables. Just like you visit the doctor to ensure your health, your cables need attention to stay in good condition. A little vigilance can go a long way!
2. Keep Cables Clean
Dust and debris can accumulate on your cables over time, potentially affecting their performance. Use a soft cloth to wipe down the cables and remove any dirt. Avoid using harsh chemicals or abrasive materials, as these can damage the insulation.
Imagine your cables are like your favorite pair of shoes. You wouldn’t want to let them get dirty and scuffed, right? Keeping your cables clean not only helps them look good but also ensures they function properly.
3. Monitor Temperature and Environment
Keep an eye on the temperature and environmental conditions where your cables are installed. If you notice any significant changes, such as increased heat or moisture, take action to mitigate these factors. For example, ensure proper ventilation in areas where cables are installed to prevent overheating.
Think of your cables as plants. Just as plants need the right environment to thrive, your cables require suitable conditions to perform well. If the environment is too harsh, it can lead to deterioration.
4. Avoid Overloading Circuits
As mentioned earlier, overloading circuits can lead to overheating and potential fire hazards. Be mindful of the total load on each circuit and avoid plugging in too many devices. If you find yourself frequently tripping circuit breakers, it may be time to reassess your electrical setup.
Consider your circuits like a busy highway. If too many cars try to use the same lane, traffic jams and accidents can occur. Keeping your circuits balanced ensures smooth operation and safety.
Troubleshooting Common Issues
Even with proper installation and maintenance, you may encounter issues with your PVC insulated cables. Here are some common problems and how to troubleshoot them.
1. Power Loss
If you experience power loss in certain areas of your home or business, it could be due to a faulty cable connection. Check for loose connections, damaged cables, or tripped circuit breakers. Tightening connections and replacing damaged cables can often resolve the issue.
Think of power loss as a leak in a water pipe. If there’s a break in the line, the flow will be interrupted. Identifying and fixing the problem quickly can restore the flow of electricity.
2. Overheating
If your cables feel hot to the touch, it’s a sign that something is wrong. Overheating can occur due to overloading, poor connections, or damaged insulation. Turn off the power immediately and inspect the cables for any visible issues. If you’re unsure, consult a professional electrician.
Overheating is like a fever in your body. It’s a warning sign that something isn’t right. Don’t ignore it—address the issue before it leads to more severe consequences.
3. Flickering Lights
Flickering lights can be annoying and may indicate a problem with your wiring. Check for loose connections at the light fixture or switch. If the issue persists, it could be a sign of a more significant electrical problem that requires professional attention.
Think of flickering lights as a warning signal. Just like a car’s check engine light, it’s telling you that something needs your attention. Don’t dismiss it—investigate the cause!
Conclusion
Choosing the right PVC insulated cable is a crucial step in ensuring the safety and efficiency of your electrical systems. By understanding the key factors—such as voltage and temperature ratings, cable size, and environmental considerations—you can make informed decisions that meet your specific needs.
Once installed, regular maintenance and inspections are vital to keeping your cables in optimal condition. By monitoring their performance and addressing any issues promptly, you can extend the lifespan of your electrical systems and prevent costly repairs.
Remember, whether you’re working on a residential project, an industrial setup, or a telecommunications installation, PVC insulated cables offer a reliable and cost-effective solution. With the right knowledge and preparation, you can tackle your electrical projects with confidence.
So, roll up your sleeves, do your research, and get ready to make the best choice for your PVC insulated cable needs. Your electrical systems will thank you for it!
